Make Every Presentation Larger Than Life
As audiences become increasingly accustomed to digital content, businesses face a growing challenge: how to make information stand out in crowded environments.
The 98-inch Landscape Naked-Eye 3D Display provides a solution by combining a giant commercial-grade screen with advanced autostereoscopic technology. The result is a display capable of transforming ordinary content into immersive visual experiences that command attention and encourage engagement.
Whether showcasing products, delivering information, or enhancing brand experiences, the display creates a level of visual impact that conventional screens cannot achieve.
Ultra-Large Format for Maximum Presence
Screen size plays a critical role in commercial communication.
With its expansive 98-inch display area, this solution offers exceptional visibility in large venues. Images, videos, and three-dimensional content remain clear and impactful even when viewed from considerable distances.
The landscape format is particularly suitable for wide-screen advertising campaigns, product demonstrations, corporate presentations, digital exhibitions, and multimedia installations.
Its commanding presence makes it an ideal centerpiece for high-profile projects.
| 98-inch Horizontal Naked-eye 3D Advertising Machine | ||
| General | Panel Size | 98‑inch |
| Backlight Type | Direct‑lit DLED | |
| Resolution | 3840 × 2160 (4K UHD) | |
| Active Display Area | 2173.5 × 1235 mm | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Viewing Angle | 178° | |
| Refresh Rate | 60 Hz | |
| Response Time | 5 ms | |
| Color Depth | 1.07 Billion Colors | |
| 3D Performance | 3D Technology | Lenticular Lens |
| Supported 3D Formats | 2D+Depth (2D+Z), Side‑by‑Side, Top‑and‑Bottom, Nine‑View | |
| Number of Views | 56 Views | |
| Light Transmittance | 95% | |
| Recommended Viewing Distance | 2.5–8 m (Adjustable) | |
| Recommended Viewing Angle | 150° Horizontal | |
| 3D Display Mode | Multi‑view Autostereoscopic | |

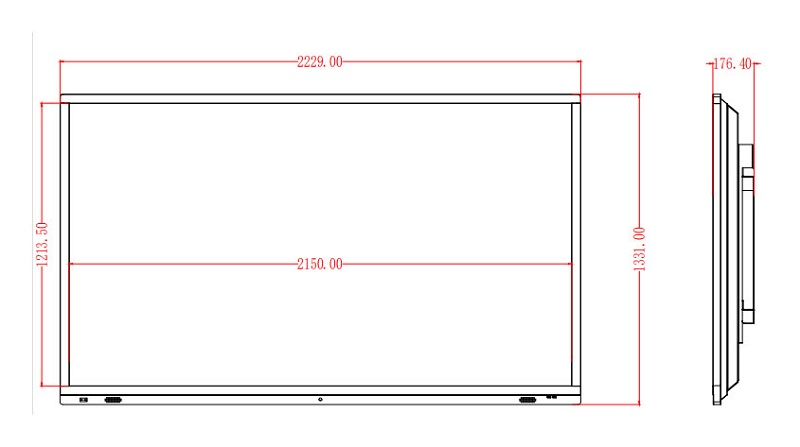

| Mechanical | Overall Dimensions | 2229 × 1330 × 125 mm |
| Active Area | 2173.5 × 1235 mm | |
| Net Weight | 200 kg | |
| Gross Weight | 230 kg | |
| Cabinet Material | Industrial‑grade Metal Housing | |
| Mounting Method | Wall‑mounted / Mobile Stand | |
| Electrical & Environmental | Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 380 W | |
| Service Life | 50,000 Hours | |
| Operating Temperature | 0°C ~ 40°C | |
| Operating Humidity | 20%–80% RH (Non‑condensing) | |
| Storage Temperature | -5°C ~ 45°C | |
| Storage Humidity | 20%–90% RH (Non‑condensing) | |
| Android System (Optional) | Operating System | Android 7.1 |
| CPU | RK3399 Hexa‑core Processor | |
| CPU Architecture | Dual Cortex‑A72 + Quad Cortex‑A53 | |
| GPU | ARM Mali‑T860MP4 | |
| RAM | 2GB Standard (4GB Optional) | |
| Storage | 16GB Standard (32GB / 64GB Optional) | |
| ROM | 32KB EEPROM | |
| WiFi | Dual‑band WiFi | |
| Bluetooth | BT 4.0 Optional | |
| Ethernet | Gigabit LAN | |
| 3G/4G | Optional Full Netcom Module | |
| Android Interfaces | USB | 2 × USB 3.0, 1 × USB 2.0 Host, 5 × USB |
| HDMI | 1 × HDMI 2.0 (4K@60Hz Output) | |
| RS232 | 3 Ports | |
| RS485 | 1 Port | |
| TTL | 1 Port | |
| GPIO | 4 Ports | |
| Audio | Stereo Output, Built‑in Dual 8Ω/5W Speakers | |
| Windows System (Optional) | Operating System | Windows 10 |
| CPU | Intel Core i5 7th Generation or Above | |
| GPU | NVIDIA GTX1050 or Higher | |
| Optional GPU | GTX1060 / GTX1080 / Quadro P4000 | |
| Memory | DDR3 4GB or Above | |
| SSD | 256GB Standard (512GB / 1TB Optional) | |
| Video Memory | 2GB or Above | |
| Windows Interfaces | USB | 2 × USB 3.0, 1 × USB 2.0 Host, 5 × USB |
| HDMI | 1 × HDMI 2.0 (4K@60Hz) | |
| DP | 1 × DisplayPort 1.2 | |
| DVI | 1 × DVI | |
| Audio | 3.5 mm Stereo Audio Output | |
| Ethernet | Gigabit LAN | |
| WiFi | RTL8111F Gigabit Network Controller | |
| Display Controller (Monitor Only) | Signal Processing | 4K 60Hz Point‑to‑Point V‑BY‑ONE |
| HDMI Input | 2 × HDMI 2.0 | |
| Supported Resolution | 2K@60Hz / 4K@60Hz | |
| Audio Output | Stereo Output | |
| Built‑in Speakers | Dual 8Ω / 5W | |
| External Devices | PC, Android Media Player, Desktop VR Device | |
| Multimedia Support | Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Image Formats | BMP, JPEG, PNG, GIF | |
| Supported 3D Content | 2D+Z, Side‑by‑Side, Top‑and‑Bottom, Nine‑View | |
Realistic 3D Without Glasses
The display utilizes advanced naked-eye 3D technology to create depth and dimensionality without requiring viewers to wear specialized eyewear.
Objects appear to float, products gain realistic volume, and visual content becomes more immersive. This technology allows audiences to experience three-dimensional effects naturally, making interaction more intuitive and accessible.
For public environments, eliminating the need for glasses significantly improves user convenience and viewing efficiency.
The Future of Large-Scale Visual Communication
As businesses seek more effective ways to capture attention and communicate information, display technology continues to evolve beyond traditional digital signage.
The 98-inch Landscape Naked-Eye 3D Display combines scale, innovation, and immersive visualization to help organizations create memorable experiences that resonate with audiences.
For brands, institutions, and commercial venues looking to elevate their visual communication strategies, it offers a future-ready platform capable of delivering exceptional impact and engagement.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
