Transform Complex Information into Engaging Visual Experiences
In today’s digital world, businesses are challenged to communicate increasingly complex products, technologies, and concepts in ways that are easy to understand and visually impressive.
The 65-inch Light Field Holographic All-in-One Display provides a next-generation solution by combining light field imaging technology with glasses-free 3D visualization. Instead of presenting static content, it creates dynamic spatial experiences that allow audiences to explore information from multiple perspectives.
Whether used for product demonstrations, innovation showcases, or interactive exhibitions, the display helps organizations communicate with greater clarity and impact.
| 65 Inch Horizontal Naked‑eye 3D All‑in‑One Display | ||
| Display | Screen Size | 65 inch |
| Resolution | 7680 × 4320 (8K UHD) | |
| Display Area | 1427 × 805 mm (H × V) | |
| Aspect Ratio | 16:9 | |
| Display Mode | Transmission Mode (Black Screen When Power Off) | |
| Max Brightness | 450 ± 50 nits | |
| Brightness Uniformity | ≥90% | |
| Contrast Ratio | 1000:1 | |
| Color Temperature | 8000 ± 500 K | |
| Color Gamut | 99% NTSC | |
| Refresh Rate | 60 Hz | |
| System Configuration | CPU | Intel Core i7 |
| RAM | 16GB | |
| Storage | 512GB SSD | |
| GPU | NVIDIA GeForce RTX 3060 | |
| Operating System | Windows | |
| Speaker | 10W × 2 Built‑in Stereo Speakers | |
| Power Consumption | < 450W (Including PC System) | |
| Interface & Connectivity | DisplayPort Input | DP ×2 |
| DP Performance | 8K @ 30Hz (Single), 8K @ 60Hz (Dual) | |
| HDMI Input | HDMI ×4 | |
| HDMI Performance | 4K @ 60Hz (Single), 8K @ 60Hz (Combined Output) | |
| Signal Type | Ultra HD Digital Signal | |
| Control Interface | Network / Optional RS232 | |
| Mechanical Structure | Cabinet Material | Cold‑rolled Steel with High‑temperature Powder Coating |
| Frame Material | Aluminum Alloy Profile | |

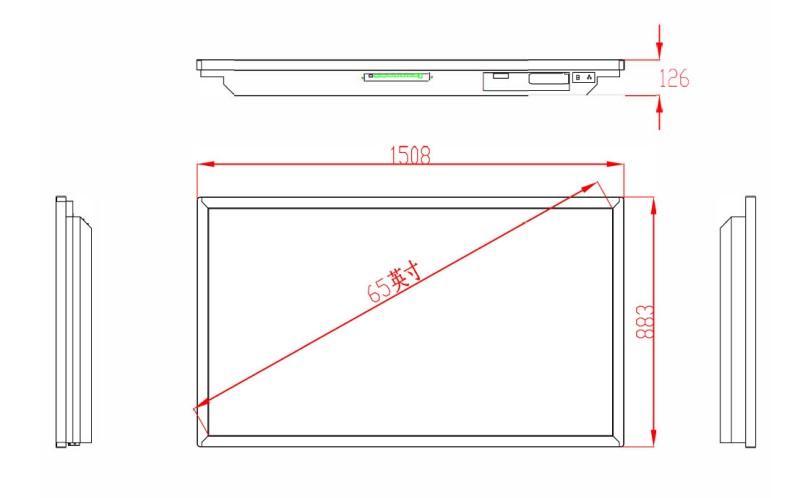

| Body Dimensions | 1508 × 126 × 883 mm (W × D × H) | |

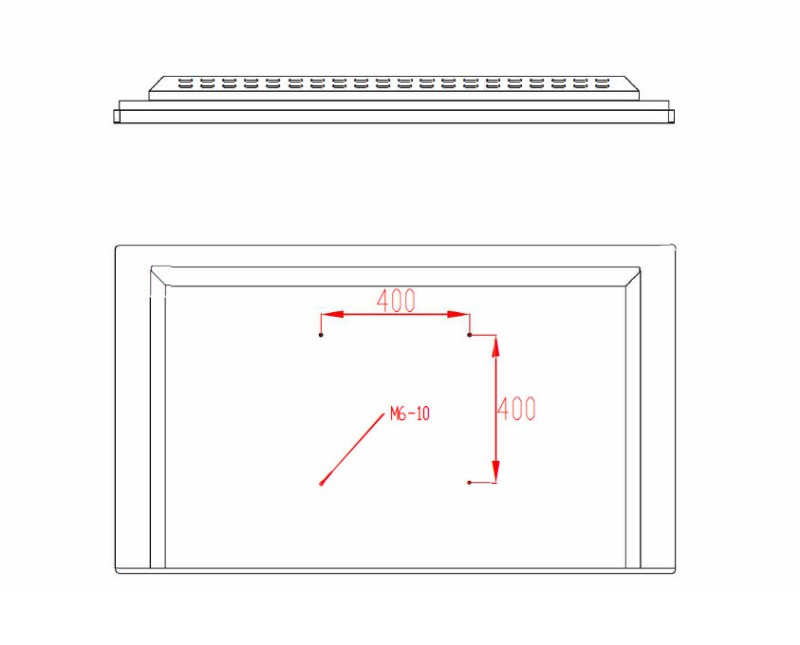

| Installation Method | Wall‑mounted / Floor‑standing Mobile Bracket | |
| Net Weight | 50 kg | |
| Gross Weight | 58 kg | |
| Electrical | Input Voltage | AC 100–240V, 50/60Hz |
| Operation Mode | 24/7 Continuous Operation Supported | |
| Power System | Integrated Industrial Power Supply | |
| Viewing Performance | Optimal Viewing Distance | 2–3 meters |
| Viewing Angle | 178° / 178° | |
| Viewing Zones | 3 viewing zones | |
| Viewing Angle per Zone | ~25° | |
| Depth Effect | Up to 80 cm Visual Depth | |
| Single View Resolution | 1.5K Equivalent | |
| Bottom Screen Resolution | 8K Ultra HD | |
| Optical Display Characteristics | Display Technology | Naked‑eye 3D / Light Field Imaging System |
| Display Mode | 2D / 3D Switchable | |
| Depth Rendering | Large Depth Field (Up to 80 cm) | |
| Optical Structure | Multi‑view Parallax Barrier System | |
| Surface Treatment | High‑precision Optical Film / Glass System | |
| Image Effect | Floating 3D / Multi‑angle Realistic Depth | |
| Packaging | Packaging Type | Reinforced Honeycomb Box + EPE Foam |
| Carton Size | 1660 × 270 × 1030 mm | |
| Protection Level | Shockproof & Moisture‑proof Industrial Packaging | |
| Shipping Method | Sea Freight / Air Freight | |
Designed for Immersive Digital Spaces
Modern exhibition halls and experience centers are evolving from information displays into immersive environments.
The 65-inch display serves as a powerful visual centerpiece capable of transforming digital content into realistic three-dimensional scenes. Visitors can experience products, concepts, and digital assets in ways that feel more natural and intuitive than traditional screens.
This immersive capability helps increase audience engagement and encourages longer interaction times.
Advanced Light Field Visualization
The display utilizes sophisticated light field technology that reproduces directional light information rather than relying solely on traditional stereoscopic effects.
As viewers move across the viewing area, content appears to shift naturally, creating realistic depth and perspective changes.
Advantages include:
- More realistic 3D perception
- Natural viewing experience
- Wider viewing freedom
- Improved visual comfort
- Enhanced spatial awareness
The result is a holographic effect that closely resembles observing a physical object.
Elevate Product Presentation
Modern products often require more than images or videos to communicate their value.
The 65-inch light field holographic display enables companies to present:
- Consumer electronics
- Automotive components
- Medical devices
- Industrial machinery
- Architectural models
- Smart technology solutions
Three-dimensional visualization helps audiences better understand product structures, functions, and design details.
A Powerful Platform for Innovation Centers
Innovation centers and corporate experience halls require display technologies that reflect technological leadership.
The display helps organizations showcase:
Artificial Intelligence Solutions
Visualize AI systems, data processing workflows, and intelligent applications.
Smart Manufacturing Platforms
Demonstrate production systems and industrial automation technologies.
Digital Twin Projects
Display real-time virtual representations of physical assets.
Future Technology Concepts
Create engaging presentations for emerging technologies and research projects.
Its futuristic visual effects help reinforce innovation-focused brand positioning.
Interactive Experiences for Modern Audiences
Today’s visitors expect participation rather than passive observation.
The all-in-one architecture supports integration with interactive software platforms, enabling users to engage directly with displayed content.
Potential applications include:
- Interactive product exploration
- Digital storytelling
- Educational simulations
- Virtual demonstrations
- Customer engagement experiences
This interactivity helps improve information retention and audience satisfaction.
