Transform Commercial Advertising with a 65 Inch Horizontal Naked Eye 3D Display
The 65 Inch Horizontal Mode 4K Naked Eye 3D Digital Advertising Billboard Player is an advanced commercial display solution designed to deliver immersive visual experiences without requiring viewers to wear 3D glasses.
Combining 4K Ultra HD resolution, glasses-free 3D technology, and a large-format horizontal display design, this professional advertising screen creates stunning visual depth that captures attention in retail stores, shopping malls, exhibitions, airports, and brand showrooms.
As a professional Naked Eye 3D Display Manufacturer, ZXTLCD provides factory-direct solutions with comprehensive OEM and ODM customization services for global distributors, advertising companies, and system integrators.
Advanced Glasses-Free 3D Technology
Unlike traditional digital signage, this Naked Eye 3D Display uses advanced autostereoscopic technology to generate realistic three-dimensional images visible to the naked eye.
Key benefits include:
- No 3D glasses required
- Realistic depth perception
- Eye-catching visual effects
- Enhanced customer engagement
- Premium advertising presentation
- Improved brand awareness
- Higher audience retention
- Stronger marketing impact
The display creates a powerful visual experience that helps brands stand out in competitive commercial environments.
| 65-inch Horizontal Naked-eye 3D Advertising Machine | ||
| Display Panel | Panel Size | 65 Inch |
| Resolution | 3840 × 2160 (4K UHD) | |
| Active Display Area | 1430 × 805 mm | |
| Overall Dimensions | 1463 × 851 × 90 mm | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 5000:1 | |
| Viewing Angle | 178° (89°/89°/89°/89°) | |
| Refresh Rate | 60 Hz | |
| Response Time | 8 ms | |
| Color Depth | 1.07 Billion Colors | |
| Aspect Ratio | 16:9 | |
| 3D Performance | 3D Technology | Lenticular Lens |
| Supported 3D Formats | Side‑by‑Side (SBS), Top‑and‑Bottom (TAB), 2D+Depth (2D+Z) | |
| Number of Views | 56 Views | |
| Light Transmittance | 95% | |
| Optimal Viewing Distance | ＞2.0 m (Adjustable) | |
| Optimal Viewing Angle | 150° Horizontal | |
| 3D Display Effect | Multi‑View Glasses‑Free 3D | |

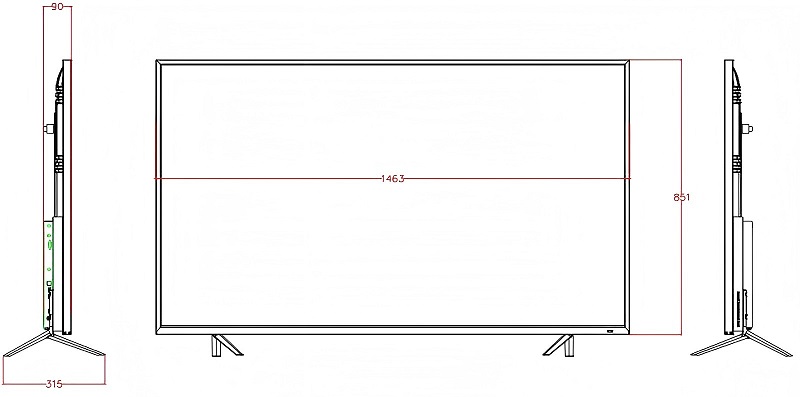

| Mechanical Specifications | Visible Area (Display Area) | 1430 × 805 mm |
| Product Dimensions | 1463 × 851 × 90 mm | |
| Net Weight | 67.5 kg | |
| Gross Weight | 82 kg | |
| Mounting Options | Wall Mount, Floor Stand, Mobile Stand | |
| Cabinet Structure | Industrial Grade Metal Housing | |
| Electrical Specifications | Input Voltage | AC 100‑240V, 50/60Hz |
| Power Consumption | Max. 280W | |
| Power Supply | Built‑in Industrial Power Module | |
| Environmental Conditions | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH (Non‑condensing) | |
| Storage Temperature | -5°C ~ 45°C | |
| Storage Humidity | 20% ~ 90% RH (Non‑condensing) | |
| Service Life | ≥ 50,000 Hours | |
| Android Version (Standard) – System Config | Operating System | Android 5.1 |
| CPU | Dual Cortex‑A17 + Quad Cortex‑A53, 64‑bit | |
| CPU Frequency | Up to 1.8 GHz | |
| MCU | Integrated Cortex‑M0 | |
| GPU | Mali‑T764 | |
| RAM | 2GB | |
| Internal Storage | 16GB eMMC | |
| EEPROM | 32KB | |
| Android Version – Interfaces | HDMI Input | 3 × HDMI |
| USB | 2 × USB 2.0 | |
| TF Card Slot | 1 × TF Card | |
| RS232 | 1 × RS232 | |
| RJ45 | 1 × Ethernet Port | |
| TV‑RF | Supported | |
| YPbPr Input | Supported | |
| CVBS Video Input | Supported | |
| CVBS Video Output | Supported | |
| VGA Input | Supported | |
| VGA Output | Supported | |
| Audio Input | Supported | |
| Audio Output | Stereo Output | |
| Coaxial Output | Supported | |
| Android Version – Network | Wi‑Fi | Built‑in Dual‑Band Wi‑Fi |
| Bluetooth | Optional | |
| Ethernet | 10/100/1000 Mbps RJ45 | |
| 3G/4G | Not Available | |
| Android Version – Multimedia | Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Image Formats | BMP, JPEG, PNG, GIF | |
| Supported 3D Formats | SBS, TAB, 2D+Z | |
| Optional Windows Version | Operating System | Windows 10 |
| CPU | Intel Core i5 / i7 Optional | |
| RAM | 8GB / 16GB Optional | |
| SSD | 256GB / 512GB / 1TB Optional | |
| GPU | NVIDIA GTX Series Optional | |
| Video Output | HDMI / DP | |
| 3D Content Playback | Supported | |
| Interactive Software | Optional | |
Horizontal Design Optimized for Advertising
The horizontal layout is specifically designed for commercial advertising and digital signage applications.
Advantages include:
- Wider content presentation area
- Better visibility in retail environments
- Ideal for video advertising
- Enhanced product storytelling
- Improved audience interaction
- Flexible installation options
This format is particularly effective for displaying promotional campaigns, brand videos, product launches, and immersive marketing content.
Ideal Applications for Commercial 3D Displays
The 65 Inch Glasses-Free 3D Advertising Display is widely used in:
- Shopping malls
- Retail stores
- Luxury brand boutiques
- Consumer electronics stores
- Automobile showrooms
- Exhibition centers
- Trade fairs
- Airports
- Railway stations
- Museums
- Corporate experience centers
- Real estate sales offices
- Entertainment venues
- Smart city advertising projects
Its large size and immersive visual effects make it ideal for attracting customers in high-traffic environments.
Commercial-Grade Reliability
Built for professional applications, this 3D Digital Advertising Billboard Player offers stable and reliable performance.
Commercial features include:
- Industrial-grade LCD panel
- 24/7 continuous operation
- Energy-efficient LED backlight
- Stable color performance
- Durable metal housing
- Multiple installation methods
- Long service life
- Low maintenance requirements
The display is engineered to meet the demands of long-term commercial operation.
OEM & ODM Custom Manufacturing Services
ZXTLCD specializes in customized glasses-free 3D display solutions.
Customization options include:
- Custom display sizes
- Touch interaction integration
- Customized Android systems
- Industrial PC integration
- Eye-tracking solutions (optional)
- Housing design customization
- Logo branding
- Software development
- CMS platform integration
- Packaging customization
From concept design to mass production, our engineering team supports complete project development.
Frequently Asked Questions
What is a naked eye 3D display?
A naked eye 3D display uses autostereoscopic technology to create three-dimensional images that can be viewed without wearing special glasses.
Does this display support 4K resolution?
Yes. The display features a native resolution of 3840 × 2160, providing ultra-high-definition image quality for commercial applications.
What industries commonly use 65-inch 3D displays?
They are widely used in shopping malls, retail stores, exhibitions, automobile showrooms, airports, museums, and corporate experience centers.
Can the display run continuously?
Yes. The display is designed for 24/7 commercial operation using industrial-grade components.
Do you provide OEM and ODM services?
Yes. ZXTLCD offers complete OEM and ODM customization services, including hardware design, software development, branding, CMS integration, and project-specific 3D display solutions.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
