Transform Advertising with Immersive 4K Glasses-Free 3D Technology
The 4K Naked Eye 3D Advertising Player is an advanced commercial display solution designed to deliver immersive three-dimensional visual experiences without requiring viewers to wear special glasses.
Powered by autostereoscopic display technology, this Glasses-Free 3D Monitor creates realistic depth, motion, and product visualization that instantly captures attention in retail stores, exhibitions, shopping malls, and promotional events.
As a professional manufacturer of Naked Eye 3D Displays, ZXTLCD provides factory-direct solutions with complete OEM and ODM customization services for global distributors, system integrators, and brand owners.
Advanced Glasses-Free 3D Display Technology
Traditional advertising screens struggle to stand out in crowded commercial environments. A Naked Eye 3D Display creates a more engaging experience by presenting realistic depth effects directly to the viewer.
Key advantages include:
- No 3D glasses required
- Realistic depth perception
- Multi-view 3D visual effect
- Enhanced customer engagement
- Premium brand presentation
- High-impact advertising performance
- Portable and easy deployment
- Commercial-grade reliability
Modern glasses-free 3D systems typically utilize lenticular lens or light-field technologies to generate stereoscopic visual effects visible to the naked eye.
| 86-inch Glasses-free 3D Display | ||
| Display Panel | Panel Size | 86 inch |
| Backlight Type | Direct‑Lit LED Array | |
| Resolution | 3840 × 2160 (4K UHD) | |
| Active Display Area | 1872 × 1053 mm | |
| Brightness | 450 cd/m² | |
| Contrast Ratio | 3000：1 | |
| Viewing Angle | 178° (89°/89°/89°/89°) | |
| Refresh Rate | 60 Hz | |
| Response Time | 8 ms | |
| Color Depth | 1.07 Billion Colors | |
| 3D Performance | 3D Technology | Lenticular Lens |
| Supported 3D Formats | Multi‑view, Side‑by‑Side (SBS), Top‑and‑Bottom (TAB), 2D+Depth (2D+Z) | |
| Number of Viewpoints | 56 Views | |
| Light Transmittance | 95% | |
| Recommended Viewing Distance | 2.5 – 8 m (Adjustable) | |
| Recommended Viewing Angle | 150° Horizontal | |
| 3D Display Mode | Multi‑view Autostereoscopic | |

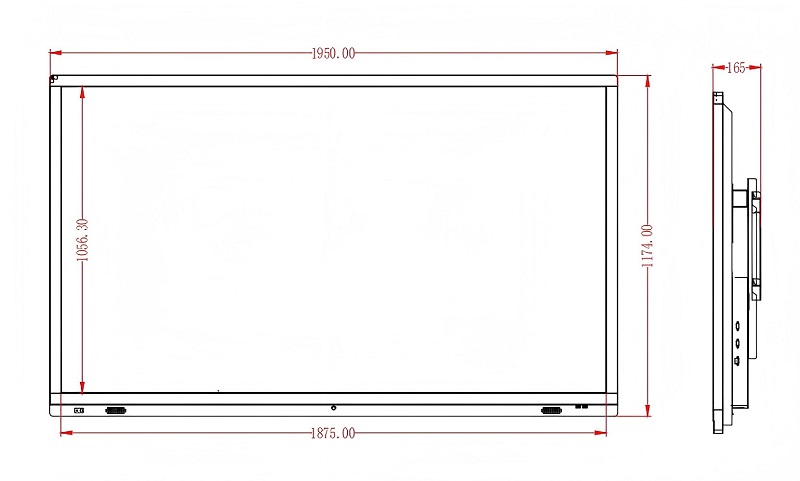

| Mechanical | Packing Dimensions | 2090 × 250 × 1310 mm |
| Active Display Area | 1872 × 1053 mm | |
| Net Weight | 180 kg | |
| Gross Weight | 200 kg | |
| Installation Method | Wall Mount / Mobile Stand | |
| Electrical | Input Voltage | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 450 W | |
| Operating Mode | 24/7 Continuous Commercial Operation | |
| Environmental | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH (Non‑condensing) | |
| Storage Temperature | -5°C ~ 45°C | |
| Storage Humidity | 20% ~ 90% RH (Non‑condensing) | |
| Service Life | 50,000 Hours | |
| Standard Monitor Version | Operating System | None |
| Controller Solution | Professional 4K Display Controller | |
| Signal Transmission | V‑BY‑ONE Point‑to‑Point Output | |
| Maximum Resolution | 4K @ 60Hz | |
| HDMI Input | 2 × HDMI 2.0 | |
| Supported Resolution | 2K@60Hz / 4K@60Hz | |
| USB | 1 × USB (Debug) | |
| Audio Output | Stereo Audio Output | |
| Built‑in Speakers | Dual 8Ω / 5W Speakers | |
| External Compatibility | Windows PC, Android Media Player, VR Workstation, 3D Rendering Server | |
| Android 7.1 Version (Optional) | Operating System | Android 7.1 |
| CPU | RK3399 Hexa‑Core | |
| Architecture | Dual Cortex‑A72 + Quad Cortex‑A53 | |
| CPU Frequency | Up to 2.0 GHz | |
| MCU | Integrated Cortex‑M0 | |
| GPU | ARM Mali‑T860MP4 | |
| RAM | 2GB Standard (4GB Optional) | |
| Storage | 16GB Standard (32GB / 64GB Optional) | |
| EEPROM | 32KB | |
| USB | 2 × USB 3.0 + 1 × USB 2.0 Host + 5 × USB | |
| HDMI | 1 × HDMI 2.0 (4K@60Hz) | |
| GPIO | 4 Channels | |
| RS232 | 3 Ports | |
| RS485 | 1 Port | |
| TTL | 1 Port | |
| Debug Port | 1 Port | |
| Audio | Stereo Output | |
| WiFi | Dual‑band WiFi | |
| Bluetooth | BT 4.0 (Optional) | |
| Ethernet | 10/100/1000 Mbps RJ45 | |
| 3G/4G | Optional Full‑Netcom Module | |
| Android 5.1 Version (Optional) | CPU | Dual Cortex‑A17 + Quad Cortex‑A53 |
| GPU | Mali‑T764 | |
| RAM | 2GB | |
| Storage | 16GB eMMC | |
| WiFi | Dual‑band WiFi | |
| Ethernet | Gigabit LAN | |
| Supported 3D Formats | SBS / TAB / 2D+Z | |
| HDMI | 3 Ports | |
| TF Card | 1 Slot | |
| USB | 2 × USB 2.0 | |
| RS232 | 1 Port | |
| RJ45 | 1 Port | |
| TV‑RF | Supported | |
| YPbPr | Supported | |
| CVBS In/Out | Supported | |
| VGA In/Out | Supported | |
| Coaxial Output | Supported | |
| Windows Version (Optional) | Operating System | Windows 10 |
| CPU | Intel® Core™ i5 7th Generation or Higher | |
| Graphics Card | NVIDIA GTX1050 or Above | |
| Optional GPU | GTX1060 / GTX1080 / Quadro P4000 | |
| RAM | DDR3 4GB or Above | |
| SSD | 256GB Standard (512GB / 1TB Optional) | |
| Video Memory | 2GB or Above | |
| USB | 2 × USB 3.0 + 1 × USB 2.0 Host + 5 × USB | |
| HDMI | 1 × HDMI 2.0 | |
| DP | 1 × DisplayPort 1.2 | |
| DVI | 1 × DVI | |
| Audio | 3.5 mm Audio Output | |
| Ethernet | Gigabit LAN | |
| WiFi Chipset | RTL8111F | |
| Multimedia Support | Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Image Formats | BMP, JPEG, PNG, GIF | |
| Supported 3D Formats | Multi‑view, SBS, TAB, 2D+Z, 9‑View | |
Portable Design for Flexible Commercial Deployment
Unlike large fixed installations, this Portable 3D Display Monitor offers flexibility for multiple business scenarios.
Ideal installation environments include:
- Retail stores
- Shopping malls
- Product launch events
- Trade shows
- Exhibition booths
- Automotive dealerships
- Real estate sales centers
- Hotels and resorts
- Corporate showrooms
- Museums and visitor centers
Its portable structure allows businesses to deploy immersive advertising experiences wherever customer attention is needed.
Smart Content Management System
For commercial deployment, the display supports flexible content management solutions.
Available options include:
- Android operating system
- USB plug-and-play playback
- HDMI multimedia input
- LAN network connectivity
- Wi-Fi connectivity
- Remote content management
- Cloud CMS integration
- Scheduled playback
- Split-screen display
- Automatic looping
These features allow businesses to manage advertising campaigns efficiently across multiple locations.
Why Choose ZXTLCD?
As an experienced Naked Eye 3D Display Manufacturer, ZXTLCD provides innovative display solutions for global commercial applications.
Our advantages include:
- Factory Direct Pricing
- OEM & ODM Manufacturing
- Professional 3D Display Engineering
- Strict Quality Control
- Stable Production Capacity
- Global Shipping Support
- Low MOQ
- Fast Lead Time
- One-Year Warranty
- Technical Support
- Responsive After-Sales Service
- Customized 3D Advertising Solutions
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
