Create High-Impact Digital Advertising with a 43 Inch Naked Eye 3D Display

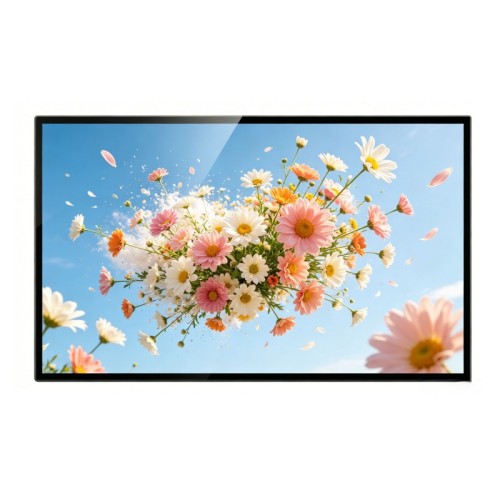

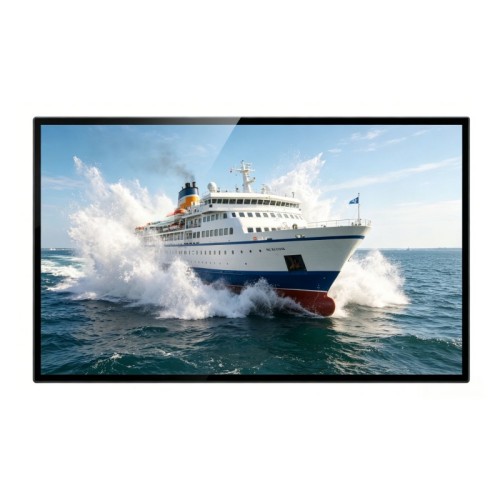

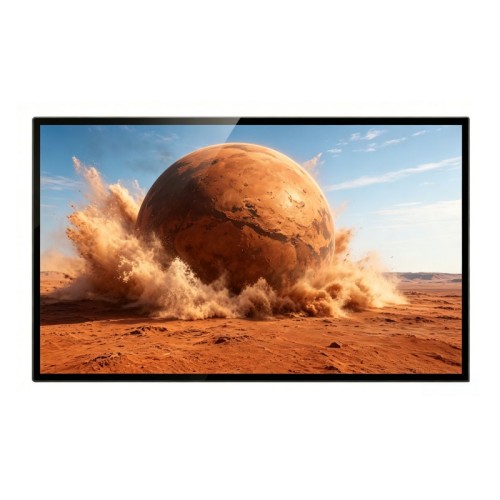

The 43 Inch Landscape Glasses-Free 3D Display Monitor is a professional indoor commercial digital signage solution designed for modern advertising environments such as shopping malls, retail stores, exhibitions, transportation hubs, and brand experience centers.
With advanced naked eye 3D technology, this display delivers realistic stereoscopic visual effects without requiring viewers to wear 3D glasses. Combined with 4K Ultra HD resolution and a commercial-grade LCD panel, it creates a powerful visual experience that significantly increases customer attention and brand engagement.
As a professional Naked Eye 3D Display Manufacturer, ZXTLCD provides factory-direct supply, OEM & ODM customization, and complete commercial digital signage solutions for global B2B customers.
Advanced Glasses-Free 3D Technology
This 43 Inch 3D Advertising Screen uses autostereoscopic (lenticular-based) technology to create real-time depth perception visible to the human eye.
Key Advantages
- No 3D glasses required
- Strong stereoscopic visual impact
- Realistic depth perception
- High customer engagement rate
- Multi-view 3D experience
- Premium advertising presentation
- Better brand storytelling
- Higher conversion potential
Modern glasses-free 3D displays typically use multi-view imaging (up to dozens of viewing angles) to create smooth and immersive visual effects suitable for commercial advertising environments.
| 43-inch Horizontal Naked-eye 3D | ||
| Display | Panel Size | 43 inches |
| Backlight | LED | |
| Backlight Type | Edge‑lit | |
| Resolution | 3840 × 2160 (4K UHD) | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 5000:1 | |
| Viewing Angle | 89° / 89° / 89° / 89° | |
| Refresh Rate | 60 Hz | |
| Response Time | 8 ms | |
| Color Depth | 1.07 Billion Colors | |
| 3D Technology | 3D Technology | Lenticular Lens (Parallax Barrier) |
| 3D Format | 2D+Z / Left‑Right | |
| Number of Views | 56 viewpoints | |
| Light Transmittance | 88% | |
| Optimal Viewing Distance | > 2.0 m (adjustable) | |
| Optimal Viewing Angle | 150° / 150° | |
| General & Mechanical | Operating System | Windows (Standard); Android Optional |

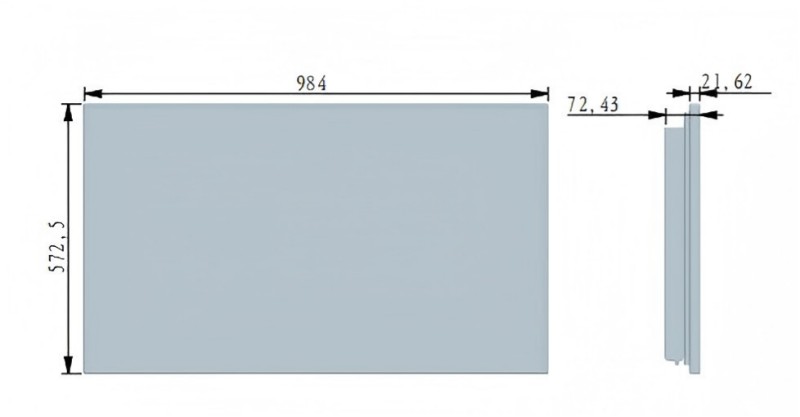

| External Dimensions | 948 × 572 × 72 mm | |
| Net Weight | 24.5 kg | |
| Gross Weight | — | |
| Packaging Size | — | |

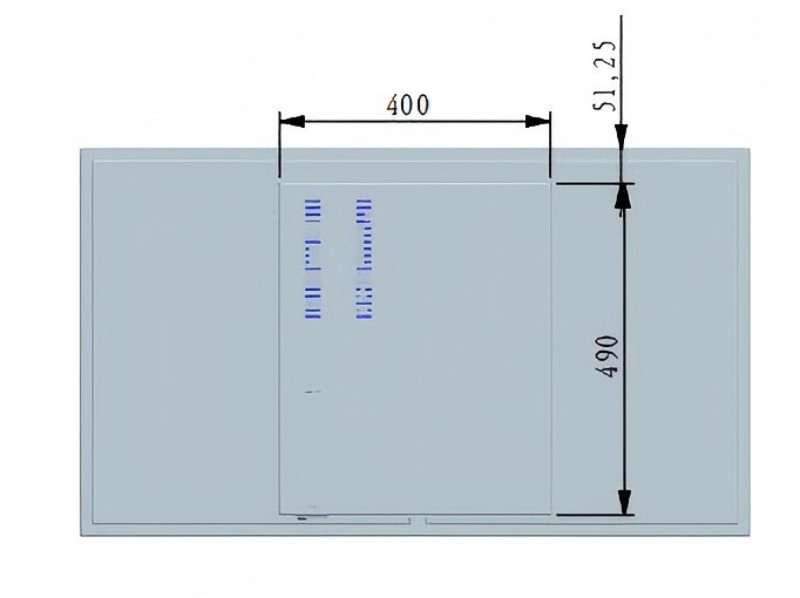

| Installation Method | Floor‑standing / Wall‑mounted / Mobile stand (optional) | |
| Electrical | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | Max. 120W | |
| Environmental | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH (non‑condensing) | |
| Storage Temperature | -5°C ~ 45°C | |
| Storage Humidity | 20% ~ 90% RH (non‑condensing) | |
| Lifespan | 50,000 hours | |
| Standard System (Monitor Solution) | System Board | High‑performance display solution supporting V‑BY‑ONE 4K@60Hz output |
| Audio | Stereo output, built‑in dual 8Ω / 5W speakers | |
| USB | 1 × USB (Debug) | |
| HDMI | 2 × HDMI 2.0 (supports 2K@60Hz / 4K@60Hz) | |
| 3D Support | 9‑grid / multi‑view rendering | |
| Compatibility Note | Supports external PC, Android media player, and VR devices | |
| Android System (Optional) | CPU | RK3399, 64‑bit processor, up to 2.0GHz (Dual Cortex‑A72 + Quad Cortex‑A53) |
| GPU | Mali‑T860 MP4 | |
| RAM | 2GB (4GB optional) | |
| ROM | 16GB eMMC (32GB / 64GB optional) | |
| EEPROM | 32KB | |
| USB | 2 × USB 3.0 + 1 × USB 2.0 (Host) + multi USB ports | |
| HDMI | 1 × HDMI 2.0 (4K supported) | |
| GPIO | 4 channels | |
| Serial Ports | RS232 ×3 / RS485 ×1 / TTL ×1 / Debug ×1 | |
| Audio | Stereo output, dual 8Ω / 5W speakers | |
| Wireless | WiFi (dual‑band), Bluetooth 4.0 (optional) | |
| Ethernet | 1 × RJ45, 10/100/1000 Mbps | |
| Media Support | Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Image Formats | BMP, JPEG, PNG, GIF | |
| 3D Formats | 9‑grid / 2D+Z / Left‑Right | |
Stunning 4K Ultra HD Display Performance
The display is equipped with a 43-inch commercial LCD panel delivering ultra-high-definition clarity.
Display Specifications
- 43-inch industrial LCD screen
- 3840 × 2160 (4K UHD resolution)
- 16:9 widescreen format
- Wide viewing angle (178°)
- High contrast ratio
- LED backlight system
- Stable 24/7 operation capability
- Rich color reproduction
43-inch 4K digital signage displays are widely used in retail and commercial environments because they offer an ideal balance between visibility, installation flexibility, and content clarity.
Ideal Applications for Commercial 3D Advertising
The 43 Inch Naked Eye 3D Billboard Screen is designed for high-traffic indoor environments where visual impact is critical.
Application Scenarios
- Shopping malls
- Retail chain stores
- Brand flagship stores
- Electronics stores
- Luxury boutiques
- Exhibition booths
- Airports and railway stations
- Museums and galleries
- Corporate lobbies
- Smart retail advertising networks
- DOOH digital signage systems
Its compact size makes it ideal for wall-mounted installation in customer-facing areas.
Why Glasses-Free 3D Advertising Is Growing Fast
Glasses-free 3D digital signage is rapidly becoming a key trend in retail and DOOH advertising because it significantly improves visual engagement compared to traditional 2D displays.
Key benefits include:
- Higher customer attention
- Longer dwell time
- Stronger product visualization
- Better advertising recall
- Improved brand differentiation
Industry research and market adoption show increasing demand for glasses-free 3D displays in retail and experiential marketing environments as brands seek more immersive visual communication tools.
OEM & ODM Custom Manufacturing Services
ZXTLCD provides full customization services for global clients.
Custom Options
- Custom screen sizes (28–100 inch range)
- Indoor/outdoor brightness options
- Touch screen integration
- Eye-tracking 3D solutions (optional)
- Android system customization
- Industrial PC integration
- Housing design customization
- Logo branding
- CMS software integration
- Packaging customization
We support full-cycle manufacturing from prototype to mass production.
Partner with a Trusted 3D Display Supplier
If you are looking for a 43 Inch Glasses-Free 3D Display Manufacturer, Indoor 3D Advertising Screen Supplier, or OEM/ODM Commercial Digital Signage Factory, ZXTLCD provides complete solutions tailored to your business needs.
We help brands build immersive advertising systems that increase engagement, strengthen brand awareness, and improve marketing conversion in competitive retail environments.
Frequently Asked Questions
What is a naked eye 3D display?
A naked eye 3D display uses autostereoscopic technology to create three-dimensional images visible without wearing special glasses.
Does it support 4K resolution?
Yes. The display supports 3840 × 2160 Ultra HD resolution for high-quality advertising content.
Where is it commonly used?
It is widely used in shopping malls, retail stores, exhibitions, airports, museums, and commercial advertising networks.
Can it run 24/7?
Yes. It is designed for 24/7 commercial operation with industrial-grade components.
Do you support OEM and ODM customization?
Yes. ZXTLCD provides full OEM & ODM services including hardware, software, branding, CMS systems, and packaging customization.
