A Larger Canvas for Extraordinary Visual Storytelling
In today’s experience-driven market, visual scale plays a critical role in attracting audiences and communicating information effectively. Businesses, exhibition organizers, and technology providers require display solutions capable of presenting content with greater realism and impact.

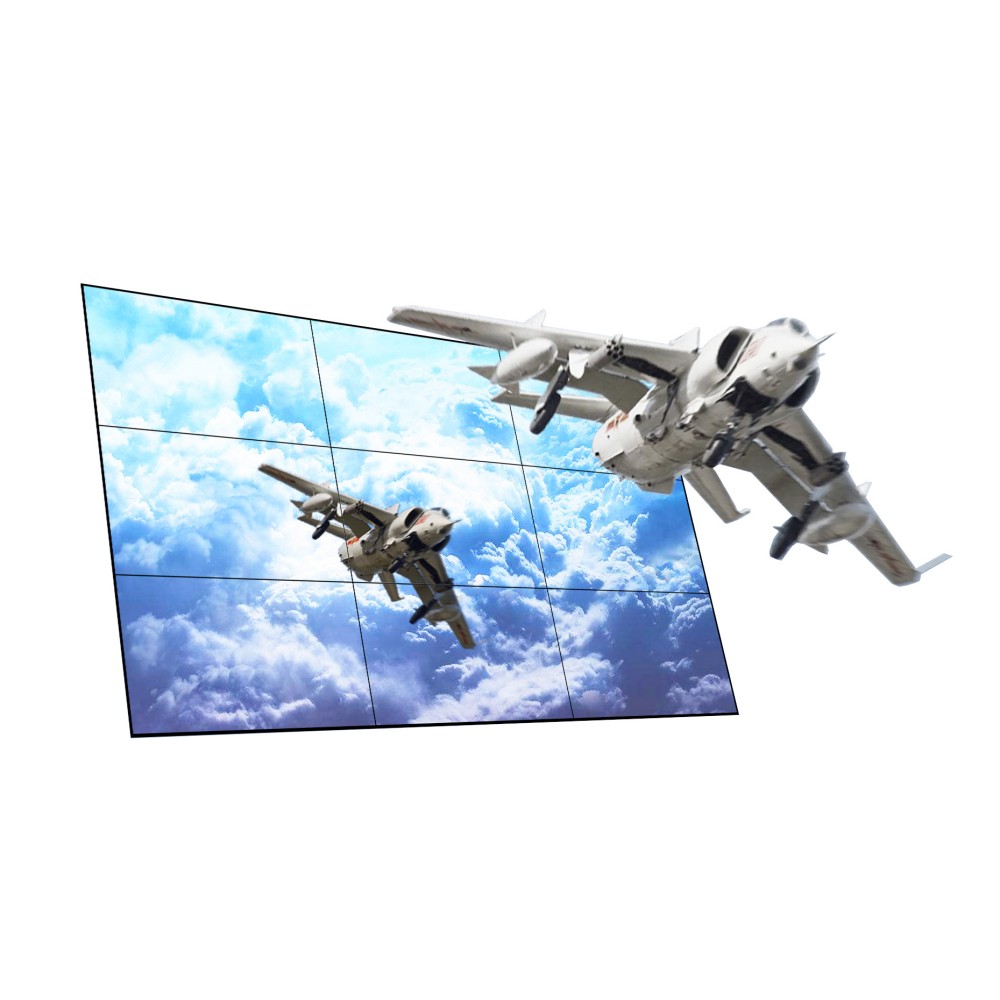

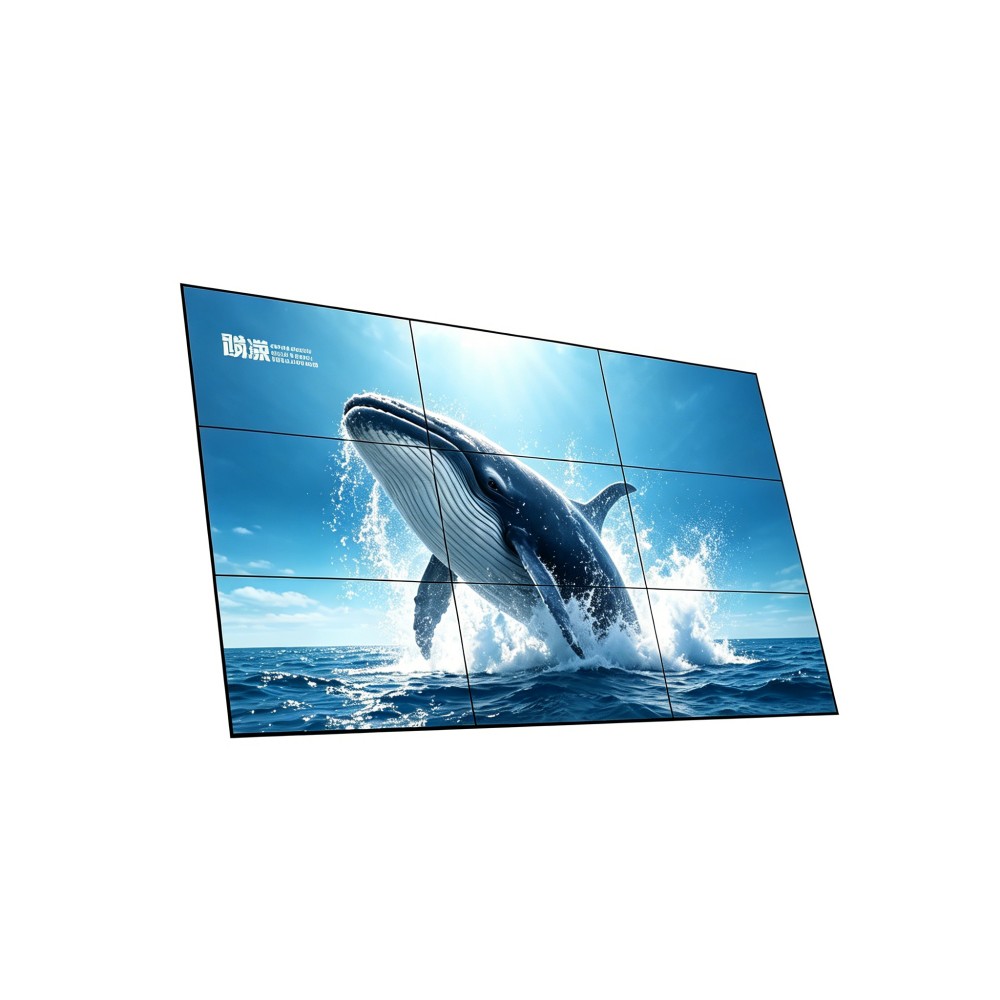

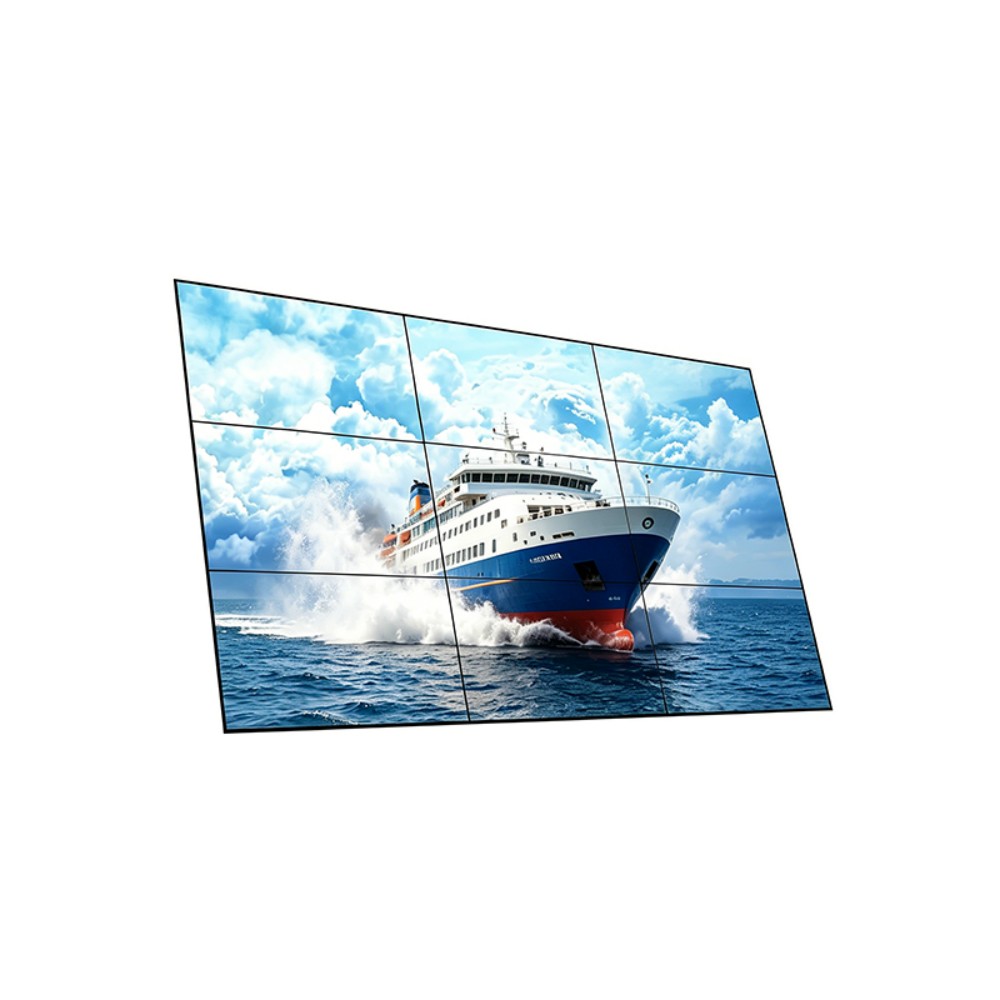

The 55-inch Light Field Holographic Video Wall 2×3 creates a massive immersive display environment by combining six precision-engineered light field panels into a unified visual surface. The result is a large-format holographic visualization system capable of delivering captivating glasses-free 3D experiences.
Designed for demanding commercial and professional applications, it transforms ordinary presentations into memorable visual journeys.
| 55-inch naked-eye 3D 2×3 splicing screen | ||
| General | Product Name | 55″ Naked-eye 3D Video Wall |
| Brand | OEM / Freeglass3D (Optional) | |
| Model | FG-55-2×3-3D | |
| Display Configuration | 2 × 3 (6 Panels) | |
| Display Technology | Naked-eye 3D LCD Video Wall | |
| Application / Installation | Wall Mount / Floor Stand / Cabinet Mount | |
| Display Panel | Panel Size | 55 inch |
| LCD Panel | Samsung DID LCD Panel | |
| Backlight Type | Direct LED | |
| Resolution (Single Panel) | 1920 × 1080 (FHD) | |
| Total Resolution | 3840 × 3240 | |
| Active Display Area (Single Panel) | 1209.6 × 680.4 mm | |
| Overall Display Size | 2419 × 2041 mm | |
| Aspect Ratio | 16:9 | |
| Pixel Arrangement | Vertical Stripe | |
| Pixel Pitch | 0.630 × 0.630 mm | |
| Dot Pitch | 0.210 × 0.630 mm | |
| Bezel Width | 3.5 mm Ultra Narrow | |
| Brightness | 550 cd/m² | |
| Contrast Ratio | 5000:1 | |
| Viewing Angle (2D) | 89° / 89° / 89° / 89° | |
| Refresh Rate | 60 / 75 Hz | |
| Response Time | 8 ms | |
| Display Colors | 1.07 Billion Colors | |
| Surface Treatment | Anti-glare | |
| Naked-eye 3D Performance | 3D Technology | Lenticular Lens (Cylindrical Lens) |
| 3D Content Format | 2D + Depth Map (2D+Z), 9-View Format | |
| Viewpoints | 56 Views | |
| Optical Transmittance | 88% | |
| Recommended Viewing Distance | 3–10 m | |
| Optimal Viewing Angle | 150° (H) / 150° (V) | |
| Operating Platform | Windows | |
| Hardware Configuration | Video Wall Panels | 6 pcs |
| Configuration | 2 × 3 | |
| 3D Server | 1 pc Industrial PC with Dedicated Graphics Card | |
| 3D Playback Software | 1 Set (Naked-eye 3D Player Included) | |
| Cables | Power Cables + HDMI Cables | |
| Mounting Structure | Aluminum Profile Video Wall Bracket | |
| Mechanical Dimensions | Panel Quantity | 6 pcs |
| Arrangement | 2 × 3 | |
| Visible Area (Single Panel) | 1209.8 × 680.6 mm | |
| Panel Dimension (Single) | 1213.4 × 684.2 mm | |
| Overall Display Size | 2419 × 2041 mm | |
| Cabinet Depth | 90–120 mm | |
| Net Weight (Single Panel) | 18.1 kg | |
| Gross Weight (Single Panel) | 19.0 kg | |
| Electrical | Input Voltage | AC 100–240V, 50/60Hz |
| Maximum Power Consumption (Single Panel) | 235 W | |
| Maximum Power Consumption (Whole Display) | ≤1.41 kW | |
| Average Power Consumption | ≈0.85 kW | |
| Environmental | Operating Temperature | 0℃ ~ 40℃ |
| Operating Humidity | 20% ~ 80% RH (Non-condensing) | |
| Storage Temperature | -5℃ ~ 45℃ | |
| Storage Humidity | 20% ~ 90% RH (Non-condensing) | |
| Lifetime | ≥50,000 Hours | |
| Package | Packing Method | Export Wooden Case |
| Transportation | Sea / Air | |
| Protection | Shock-proof & Moisture-proof | |
Massive Display Area for High-Impact Presentations
A 2×3 video wall configuration significantly increases viewing space compared with traditional displays.
The larger display area enables organizations to showcase:
- Full-scale product demonstrations
- Interactive brand campaigns
- Smart city simulations
- Industrial visualization systems
- Architectural walkthroughs
- Large-scale educational content
The expanded screen size helps audiences absorb more information while maintaining exceptional visual clarity.
Advanced Light Field Technology Creates Realistic Depth
The display utilizes sophisticated light field imaging technology that recreates how light behaves in the real world.
Unlike conventional flat screens, viewers can perceive natural depth and dimensionality from different viewing positions. As they move across the display area, visual perspectives change smoothly, creating a realistic holographic effect.
This technology enhances audience immersion and provides a more comfortable viewing experience compared to traditional stereoscopic displays.
Built for Landmark Commercial Installations
The 2×3 configuration is ideal for projects that require a strong visual centerpiece.
Common deployment scenarios include:
Digital Experience Centers
Create immersive visitor journeys through large-scale holographic content.
Exhibition and Trade Show Booths
Capture attention from long distances and increase visitor engagement.
Corporate Briefing Centers
Present business solutions, technologies, and innovations with greater visual impact.
Science Museums
Transform educational content into engaging interactive experiences.
Public Information Spaces
Deliver complex information through intuitive three-dimensional visualization.
The large-format presentation helps organizations communicate ideas more effectively.
erfect for Next-Generation Digital Twin Visualization
Digital twin systems often involve large amounts of data and complex 3D models.
The 55-inch 2×3 holographic video wall provides an ideal visualization platform for:
- Smart factory management
- Infrastructure monitoring
- Urban planning projects
- Transportation systems
- Energy management platforms
- Industrial process simulation
The increased screen area enables users to view large datasets and spatial models with greater clarity and understanding.
Elevate Commercial Visualization to a New Scale
As organizations continue investing in immersive technologies, large-format holographic displays are becoming essential tools for communication, education, and brand engagement.
The 55-inch Light Field Holographic Video Wall 2×3 combines impressive scale, advanced light field imaging, and commercial durability to create a next-generation visualization platform. Whether deployed in exhibitions, smart city projects, museums, corporate centers, or technology showcases, it delivers unforgettable visual experiences that leave lasting impressions.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
