A New Generation of Vertical Holographic Communication
In modern commercial environments, attracting attention is becoming increasingly challenging. Traditional posters and flat digital signage often struggle to stand out in crowded public spaces.
The 65-inch Portrait Light Field Holographic Display introduces a more engaging approach to visual communication. By combining a vertical display format with advanced light field holographic technology, it creates realistic three-dimensional content that appears to float naturally within the viewing space.
This innovative display solution helps businesses deliver information in a more memorable and impactful way.
| 65 inch Vertical Naked-eye 3D All-in-One Display | ||
| Display | Screen Size | 65 inch |
| Resolution | 4320 × 7680 | |
| Display Area | 805 × 1427 mm (H × V) | |
| Aspect Ratio | 9:16 | |
| Display Mode | Transmission Mode (Black Screen When Power Off) | |
| Max Brightness | 450 ± 50 nits | |
| Brightness Uniformity | ≥90% | |
| Contrast Ratio | 1000:1 | |
| Color Temperature | 8000 ± 500 K | |
| Color Gamut | 99% NTSC | |
| Refresh Rate | 60 Hz | |
| System Configuration | CPU | Intel Core i7 |
| RAM | 16GB | |
| Storage | 512GB SSD | |
| GPU | NVIDIA GeForce RTX 3060 | |
| Operating System | Windows | |
| Speaker | 10W × 2 Built-in Stereo Speakers | |
| Interface & Connectivity | DisplayPort Input | DP ×2 |
| DP Performance | 8K @ 30Hz (Single), 8K @ 60Hz (Dual) | |
| HDMI Input | HDMI ×2 | |
| HDMI Performance | 4K @ 60Hz (Single), 8K @ 60Hz (Combined Output) | |
| Signal Type | Ultra HD Digital Signal | |
| Control Interface | Network / Optional RS232 | |
| Mechanical | Cabinet Material | Cold-rolled Steel with High-temperature Powder Coating |
| Frame Material | Aluminum Alloy Profile (Spray-painted) | |

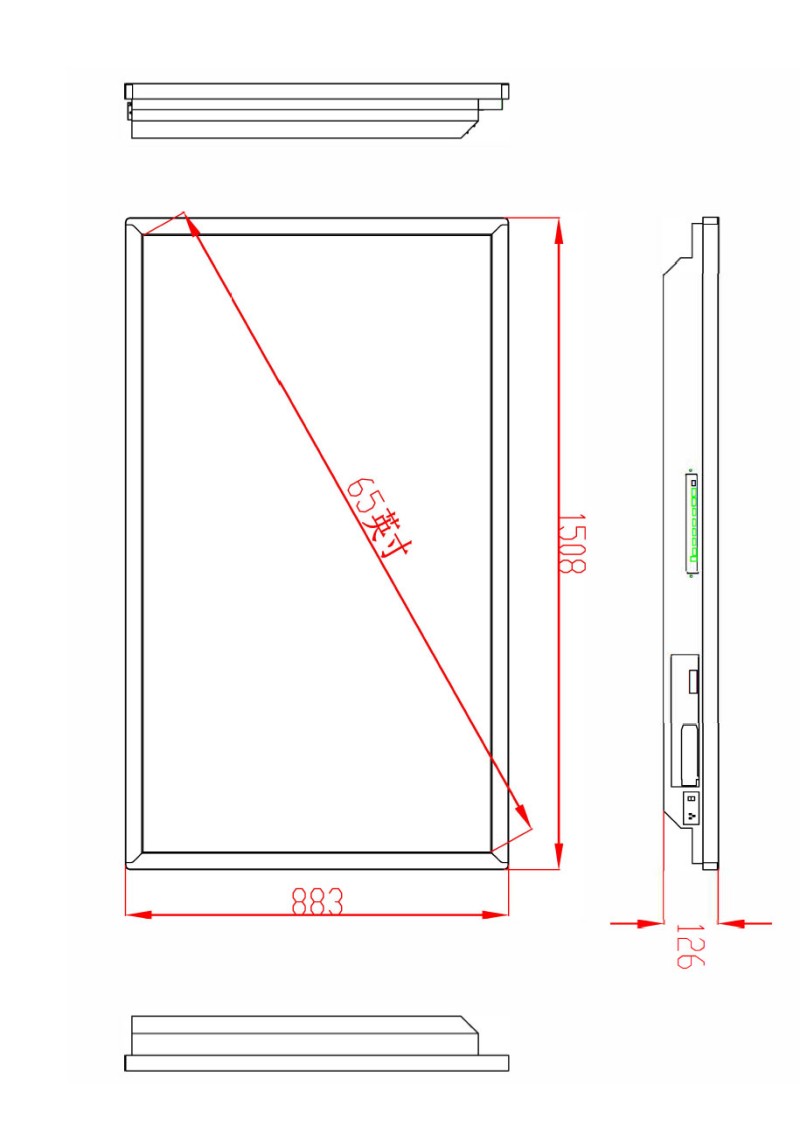

| Body Dimensions | 883 × 126 × 1508 mm (W × D × H) | |

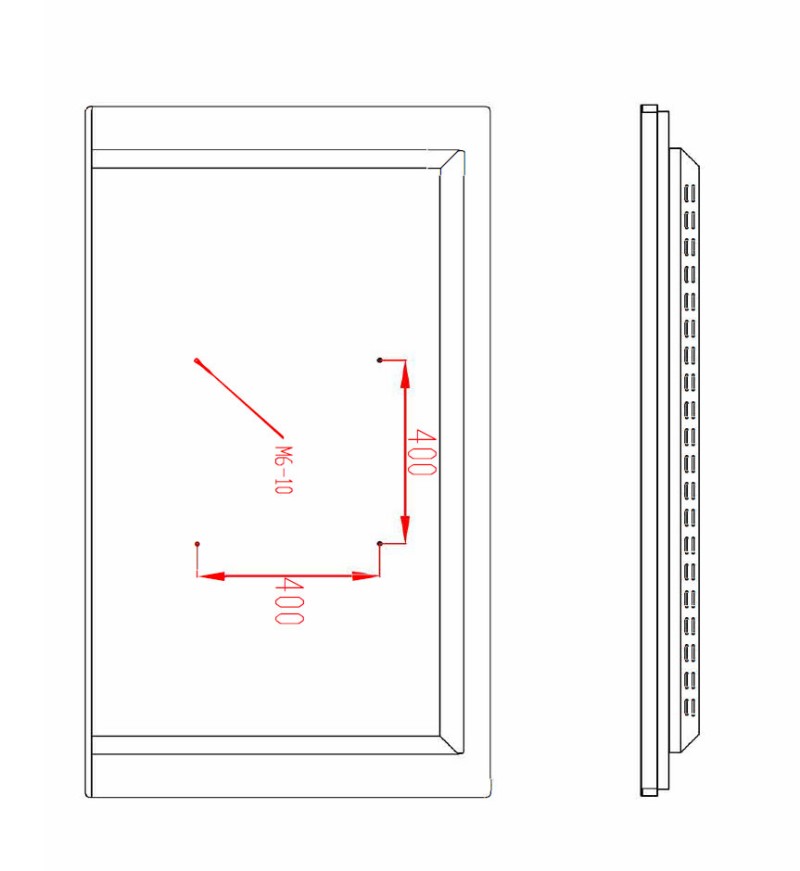

| Installation Method | Wall-mounted / Floor-standing Mobile Bracket | |
| Net Weight | 50 kg | |
| Gross Weight | 58 kg | |
| Electrical | Power Consumption | < 450 W |
| Input Voltage | AC 100–240V, 50/60Hz | |
| Operation Mode | 24/7 Continuous Operation Supported | |
| Viewing Performance | Optimal Viewing Distance | 2–3 meters |
| Viewing Angle | 178° / 178° | |
| Optimal Viewing Positions | 3 frontal viewing zones | |
| Viewing Angle per Zone | ~25° | |
| Depth Effect | Up to 90 cm Visual Depth | |
| Single View Resolution | 1.5K Equivalent | |
| Bottom Screen Resolution | 8K Ultra HD | |
| Optical Characteristics | Display Technology | Naked-eye 3D / Light Field Imaging System |
| Display Mode | 2D / 3D Switchable | |
| Depth Rendering | Large Depth Field (Up to 90 cm) | |
| Optical Structure | Multi-view Parallax Barrier System | |
| Surface Treatment | High-precision Optical Film / Glass System | |
| Image Effect | Floating 3D / Multi-angle Realistic Depth | |
Vertical Design for High-Traffic Environments
Portrait displays are widely used in locations where visitors naturally consume information vertically.
The 65-inch vertical format is particularly effective for:
- Shopping malls
- Airport terminals
- Hotel lobbies
- Museums
- Exhibition entrances
- Corporate reception areas
- Smart city information points
Its upright design provides excellent visibility while occupying minimal floor space, making it suitable for environments with heavy pedestrian traffic.
Realistic Light Field Holographic Imaging
Unlike conventional digital signage, the display uses advanced light field rendering technology to recreate depth and perspective.
Visitors can observe content from different viewing positions and experience natural changes in perspective, creating a more lifelike visualization effect.
Benefits include:
- Glasses-free 3D viewing
- Smooth perspective transitions
- Natural depth perception
- Enhanced realism
- Multi-user viewing capability
This technology helps create a premium visual experience that immediately attracts attention.
Key Features
- 65-inch portrait display format
- Advanced light field holographic technology
- Glasses-free 3D visualization
- Vertical digital signage design
- Multi-view immersive experience
- High-definition commercial panel
- Smart wayfinding compatibility
- Interactive content support
- Commercial-grade reliability
- OEM and ODM customization available
Redefining Vertical Digital Experiences
As commercial environments evolve toward more immersive and interactive communication, businesses require display technologies that can capture attention and deliver memorable experiences.
The 65-inch Portrait Light Field Holographic Display combines realistic holographic visualization, efficient vertical design, and commercial-grade performance to create a powerful platform for information delivery, brand promotion, and audience engagement.
Whether deployed in retail spaces, museums, transportation hubs, corporate facilities, or exhibition venues, it offers a forward-looking solution for next-generation digital communication.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
