Experience a New Dimension of Visual Communication
Traditional digital displays are limited by flat images and fixed viewing perspectives. As industries increasingly demand more immersive ways to present information, light field technology is emerging as a breakthrough solution for next-generation visualization.
The 55-inch Light Field Holographic Display combines advanced optical engineering with glasses-free 3D imaging to create realistic spatial content. By reproducing natural light information from multiple angles, it enables viewers to perceive depth, volume, and perspective in a way that closely resembles real-world observation.
The result is a display platform capable of transforming ordinary digital content into captivating visual experiences.
| 55 inch vertical Naked‑eye 3D All‑in‑One Display | ||
| Display | Product Type | Naked‑eye 3D All‑in‑One Display |
| Screen Size | 55 inch | |
| Resolution | 4320 × 7680 (8K UHD) | |
| Display Area | 680.4 × 1209.6 mm (H × V) | |
| Aspect Ratio | 9:16 | |
| Display Mode | Transmission Mode (Black Screen When Power Off) | |
| Max Brightness | 300 ± 50 nits | |
| Brightness Uniformity | ≥90% | |
| Contrast Ratio | 1000：1 | |
| Color Temperature | 9000 ± 500 K | |
| Color Gamut | 99% NTSC | |
| Refresh Rate | 60 Hz | |
| System Configuration | CPU | Intel Core i7 |
| RAM | 16GB | |
| Storage | 512GB SSD | |
| GPU | NVIDIA GeForce RTX 3050 | |
| Operating System | Windows | |
| Speaker | 10W × 2 Built‑in Stereo Speakers | |
| Interface & Connectivity | DisplayPort Input | DP ×2 |
| DP Performance | 8K @ 30Hz (Single DP), 8K @ 60Hz (Dual DP) | |
| HDMI Input | HDMI ×4 | |
| HDMI Performance | 4K @ 60Hz (Single HDMI), 8K @ 60Hz (Four HDMI Inputs) | |
| Signal Type | Ultra HD Digital Signal | |
| Control Interface | Network / Optional RS232 | |
| Mechanical Structure | Cabinet Material | Cold‑rolled Steel with High‑temperature Powder Coating |
| Frame Material | Metal Profile with High‑temperature Powder Coating | |

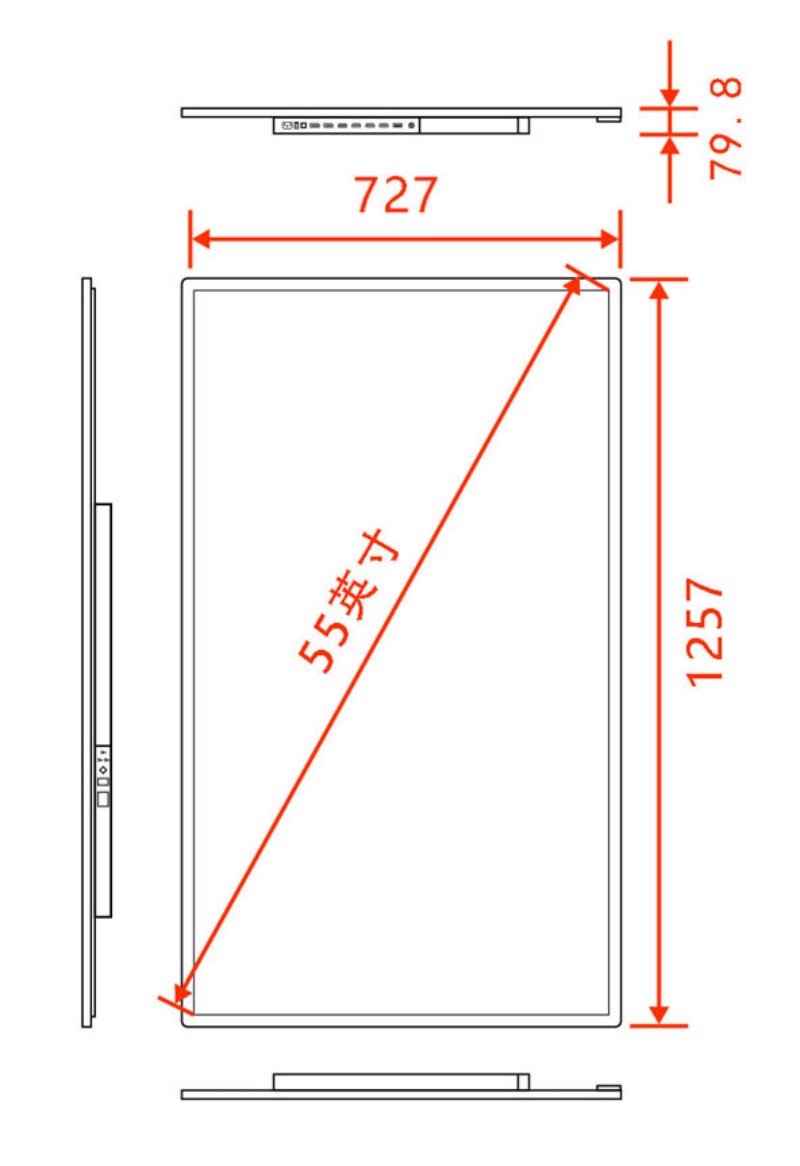

| Body Dimensions | 727 × 79.8 × 1257 mm (W × D × H) | |

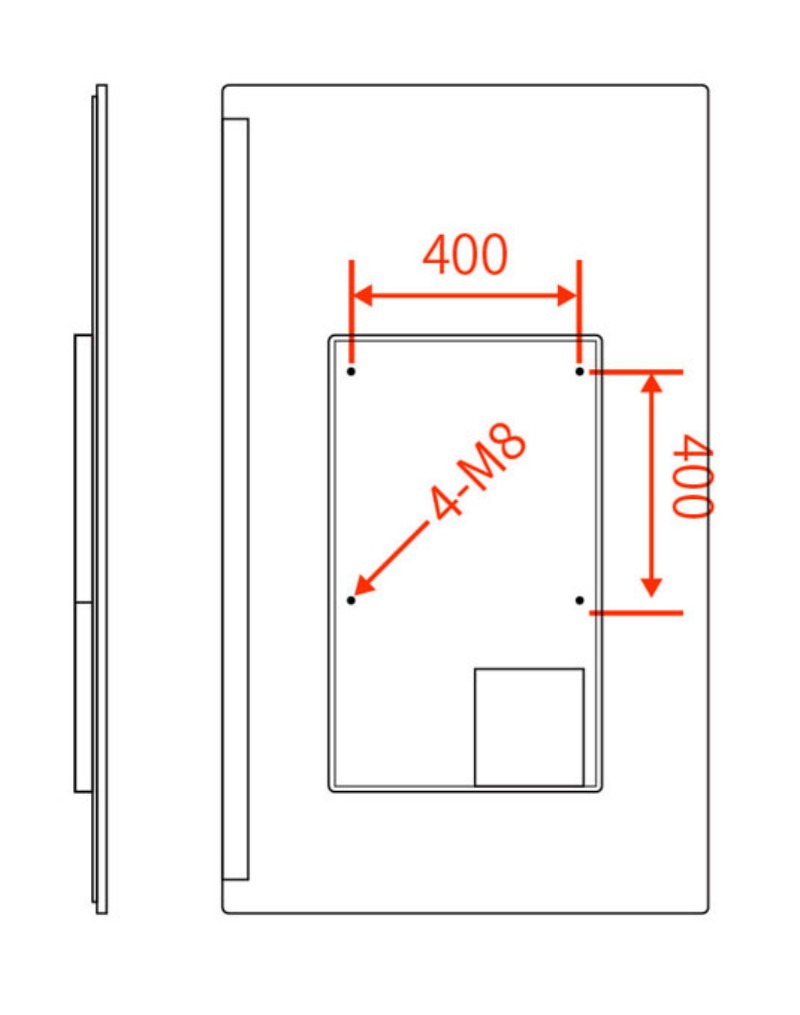

| Installation Method | Wall‑mounted / Floor‑standing Mobile Stand | |
| Net Weight | 37 kg | |
| Gross Weight | 47 kg | |
| Electrical | Power Consumption | < 200 W |
| Input Voltage | AC 100–240V, 50/60Hz | |
| Operation Mode | Supports 24/7 Continuous Operation | |
| Viewing Performance | Optimal Viewing Distance | 1.5–3 m |
| Viewing Angle | 178° / 178° | |
| Viewing Zones | 3 Horizontal Viewing Zones | |
| Viewing Angle per Zone | Approximately 25° | |
| Depth Effect | Up to 40 cm Visual Depth | |
| Single View Resolution | 1.5K Equivalent | |
| Base Panel Resolution | 8K Ultra HD | |
| Optical Display Characteristics | Display Technology | Glasses‑free 3D Light Field Display |
| Display Mode | Switchable 2D / 3D | |
| Optical System | Multi‑view Light Field Imaging | |
| Depth Rendering | Up to 40 cm | |
| Surface Treatment | Precision Optical Film & Glass Structure | |
| 3D Effect | Floating Images with Natural Depth and Wide Viewing Experience | |
| Packaging | Packaging Type | Reinforced Honeycomb Carton + EPE Foam |
| Carton Dimensions | 1557 × 210 × 977 mm (L × W × H) | |
| Protection | Shockproof & Moisture‑resistant Packaging | |
| Shipping Method | Sea Freight / Air Freight | |
Light Field Technology Beyond Conventional 3D
Unlike traditional stereoscopic displays that rely on limited depth simulation, light field displays reconstruct the direction of light rays reaching the viewer’s eyes.
This technology allows users to naturally observe different viewpoints as they move around the screen, creating a more authentic and comfortable three-dimensional experience.
Benefits include:
- Natural depth perception
- Smooth perspective transitions
- Enhanced spatial realism
- Reduced visual fatigue
- Multi-viewer compatibility
This makes the display particularly suitable for professional and commercial environments where viewing quality is critical.
Optimized for Premium Display Environments
The 55-inch screen size offers an ideal balance between visual impact and installation flexibility.
It can be deployed in a variety of high-end applications, including:
- Luxury retail stores
- Brand experience centers
- Corporate showrooms
- Technology demonstration halls
- Museums and science centers
- Digital exhibition spaces
Its medium-large format provides excellent visibility while maintaining practical installation requirements.
Bring Digital Assets to Life
Modern businesses often rely on digital models and visual simulations to communicate complex concepts.
The 55-inch light field holographic display enables audiences to view:
- 3D product models
- Architectural visualizations
- Medical imaging data
- Industrial equipment structures
- Engineering simulations
- Interactive educational content
By presenting these assets in a realistic spatial format, viewers can better understand details that are difficult to communicate through traditional displays.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
