Visualize Big Ideas on a Grand Scale
As organizations work with increasingly complex information, traditional display systems often struggle to present large datasets, detailed models, and immersive visual content in a way that is both engaging and easy to understand.

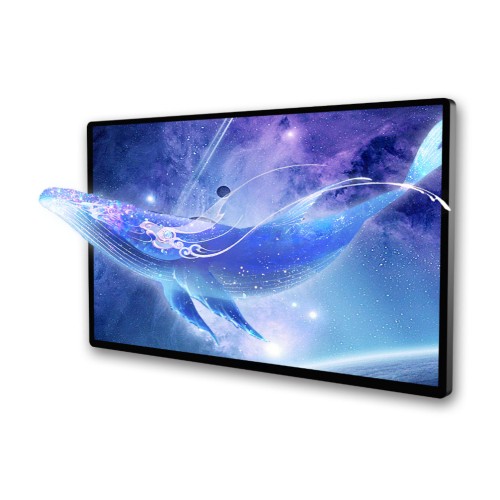

The 110-inch Landscape Light Field Holographic All-in-One Display is designed for large-scale visualization environments where clarity, realism, and impact are critical. By combining an ultra-wide display format with advanced light field holographic imaging, it creates realistic spatial content that can be experienced naturally without glasses.
The result is a display solution capable of turning information into an immersive visual experience.
| 110 inch Landscape Light Field Holographic All-in-One Display | ||
| Display | Screen Size | 110 inch |
| Resolution | 7680 × 4320 (8K UHD) | |
| Display Area | 2436.48 × 1370.52 mm (H × V) | |
| Aspect Ratio | 16:9 | |
| Display Mode | Transmission Mode (Black Screen When Power Off) | |
| Max Brightness | 500 ± 50 nits | |
| Brightness Uniformity | ≥90% | |
| Contrast Ratio | 1000：1 | |
| Color Temperature | 8000 ± 500 K | |
| Color Gamut | 100% NTSC | |
| Refresh Rate | 60 Hz | |
| System Configuration | CPU | Intel Core i7 |
| RAM | 16GB | |
| Storage | 512GB SSD | |
| GPU | NVIDIA GeForce RTX 3070 | |
| Operating System | Windows | |
| USB Ports | USB 3.0 × 4 | |
| Network Interface | LAN ×1 (Supports Wake-on-LAN) | |
| Audio Output | LINE Out ×1 | |
| Audio Input | MIC In ×1 | |
| Interface & Connectivity | Video Input | DisplayPort ×2 |
| Single DP Output | 8K @ 30Hz | |
| Dual DP Output | 8K @ 60Hz | |
| Signal Type | Ultra HD Digital Signal | |
| Control Interface | Network / Optional RS232 | |
| Mechanical Structure | Cabinet Material | Cold-rolled Steel with High-temperature Powder Coating |
| Frame Material | Metal Steel Structure | |

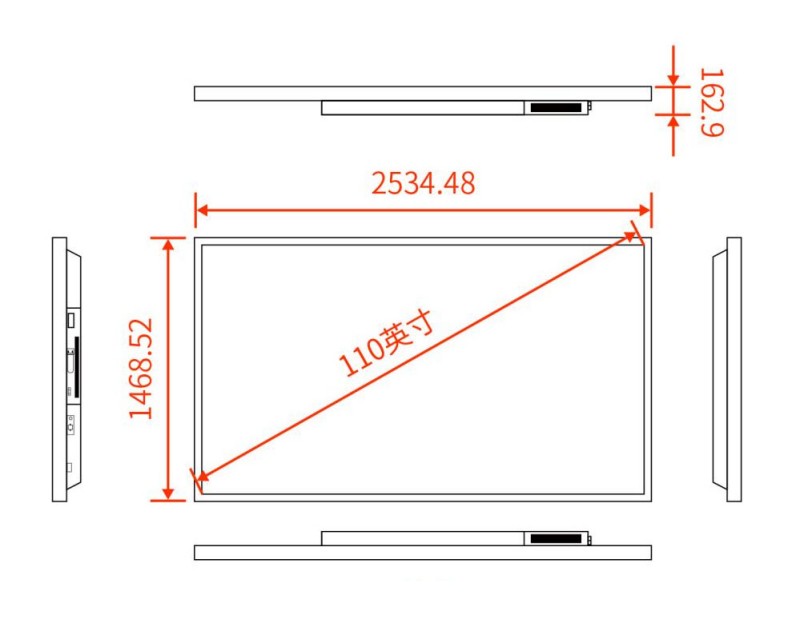

| Body Dimensions | 2534.5 × 1468.5 × 162.9 mm (W × H × D) | |

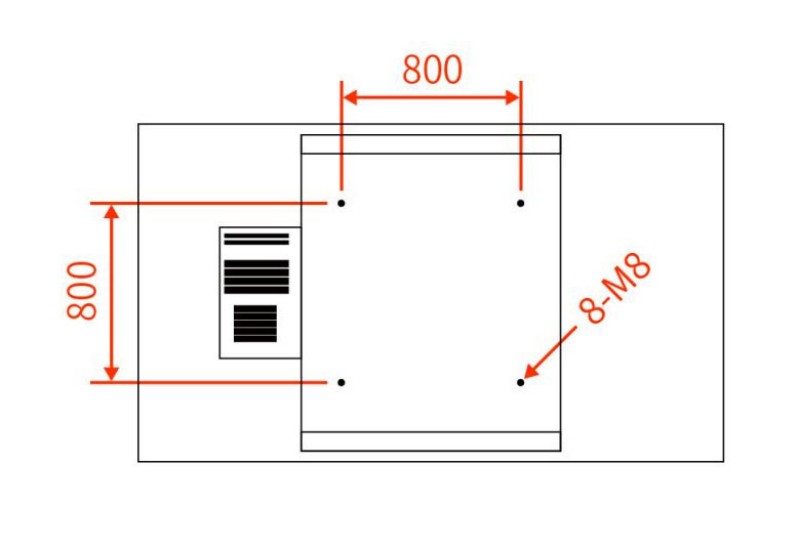

| Installation Method | Wall-mounted / Floor-standing Mobile Bracket | |
| Net Weight | 250 kg | |
| Gross Weight | 300 kg | |
| Electrical | Power Consumption | < 1000 W |
| Input Voltage | AC 100–240V, 50/60Hz | |
| Operation Mode | 24/7 Continuous Operation Supported | |
| Viewing Performance | Optimal Viewing Distance | 4–6 meters |
| Viewing Angle | 178° / 178° | |
| Optimal Viewing Positions | 3 frontal viewing zones | |
| Viewing Angle per Zone | ~25° | |
| Depth Effect | Up to 150 cm Large Depth Perception | |
| Single View Resolution | 1.5K Equivalent | |
| Bottom Screen Resolution | 8K Ultra HD | |
| Optical Display Characteristics | Display Technology | Light Field / Holographic Imaging System |
| Display Mode | 2D / 3D / Holographic Switchable | |
| Depth Rendering | Large Depth Field (Up to 150 cm) | |
| Optical Structure | Multi-view Light Field Rendering System | |
| Surface Treatment | High-precision Optical Glass / Film System | |
| Image Effect | Floating 3D / Realistic Depth Perception | |
| Packaging | Packaging Type | Wooden Case + EPE Foam Protection |
| Carton Size | 2600 × 1680 × 450 mm | |
| Protection Level | Shockproof & Moisture-proof Industrial Packaging | |
| Shipping Method | Sea Freight / Air Freight | |
Engineered for Large Collaborative Spaces
Many professional environments require multiple viewers to observe content simultaneously.
The 110-inch landscape format provides an expansive viewing canvas that allows teams, visitors, and audiences to engage with information together.
Ideal environments include:
- Executive briefing rooms
- Command and control centers
- Innovation laboratories
- Digital art galleries
- Exhibition halls
- Large corporate showrooms
- Educational visualization centers
Its wide-screen design supports collaborative viewing while maximizing content visibility.
Advanced Spatial Visualization Technology
Light field technology recreates directional light information rather than relying on simple stereoscopic effects.
This allows viewers to perceive realistic depth, scale, and perspective changes as they move within the viewing area.
Key advantages include:
- Natural glasses-free viewing
- Authentic depth perception
- Smooth multi-angle observation
- Enhanced object realism
- Reduced visual fatigue
These capabilities help make complex visual information easier to understand.
A Powerful Tool for Command and Decision Centers
Modern command environments rely heavily on visualization.
The display can be used to present:
Operational Dashboards
Visualize real-time data in a more intuitive format.
Geographic Information Systems
Display maps and spatial information with enhanced depth.
Infrastructure Monitoring
Present large-scale systems and network architectures clearly.
Emergency Response Planning
Improve situational awareness through immersive visualization.
Its large size allows critical information to remain visible even in collaborative environments.
Elevate Digital Art and Creative Experiences
Artists and creative organizations increasingly seek technologies that push beyond traditional displays.
The 110-inch light field holographic display enables:
- Digital sculpture presentations
- Interactive visual installations
- Immersive media experiences
- Virtual exhibition content
- Motion graphics showcases
The realistic spatial effect helps transform digital content into compelling visual art.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
